Gratings Options

ACO offer a range of “Complete the Look” gratings providing a choice of eight grating styles which can be fitted to our HexDrain channels to add the finishing touch to your project.

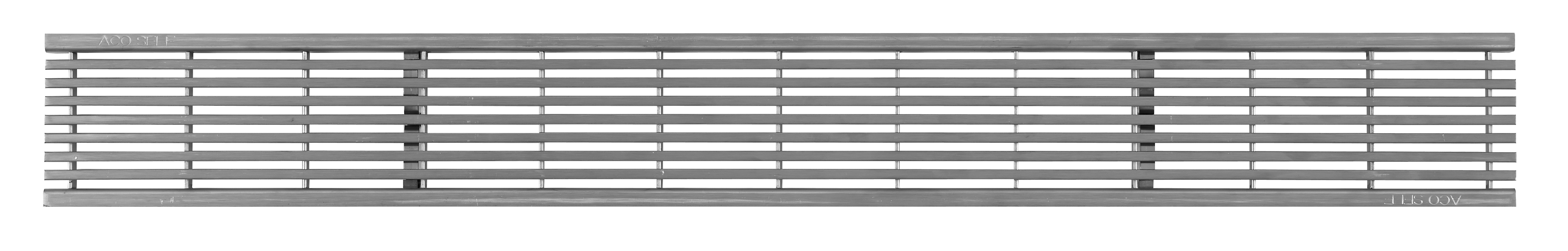

Wedge Wire Stainless Steel A15 (10323)

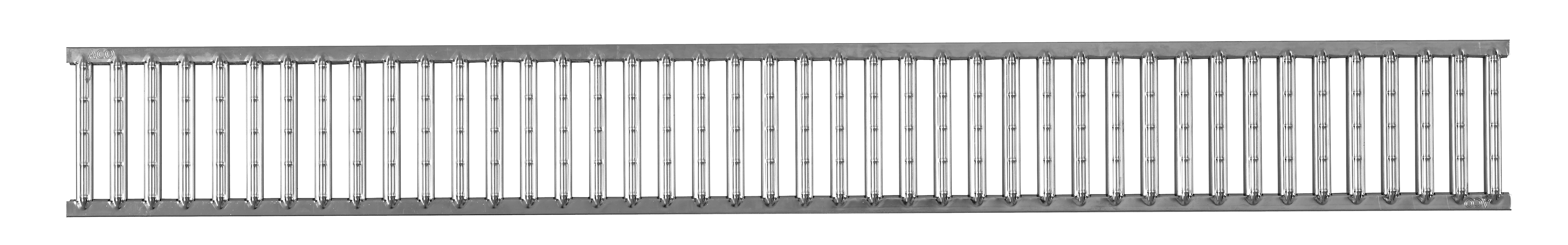

Polished Stainless Steel A15 (310307)

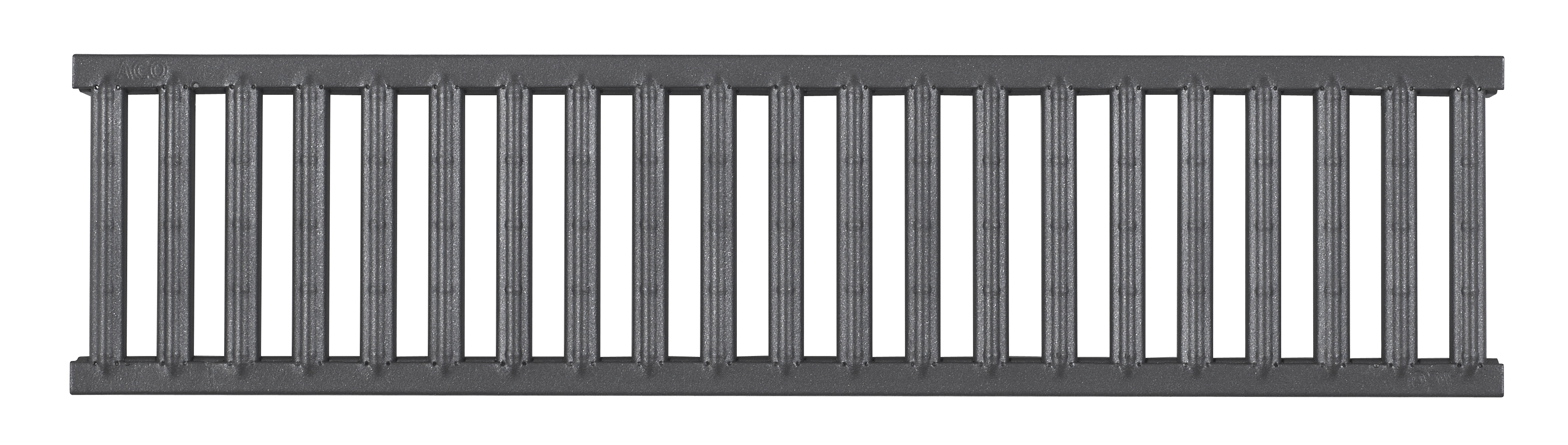

Anthracite A15 (10305)

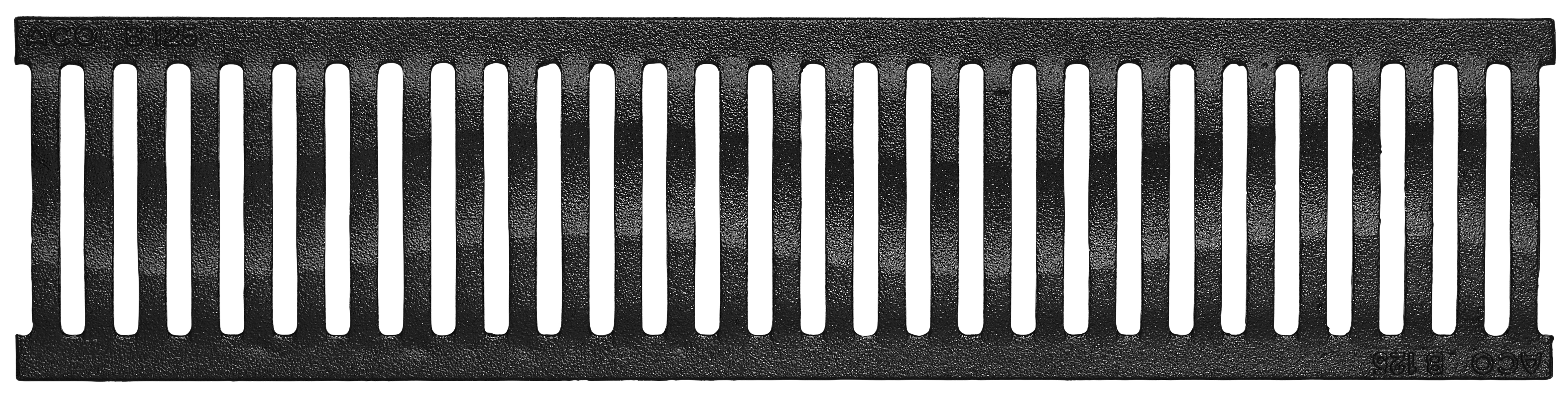

Antique Iron Heelguard B125 (20400)

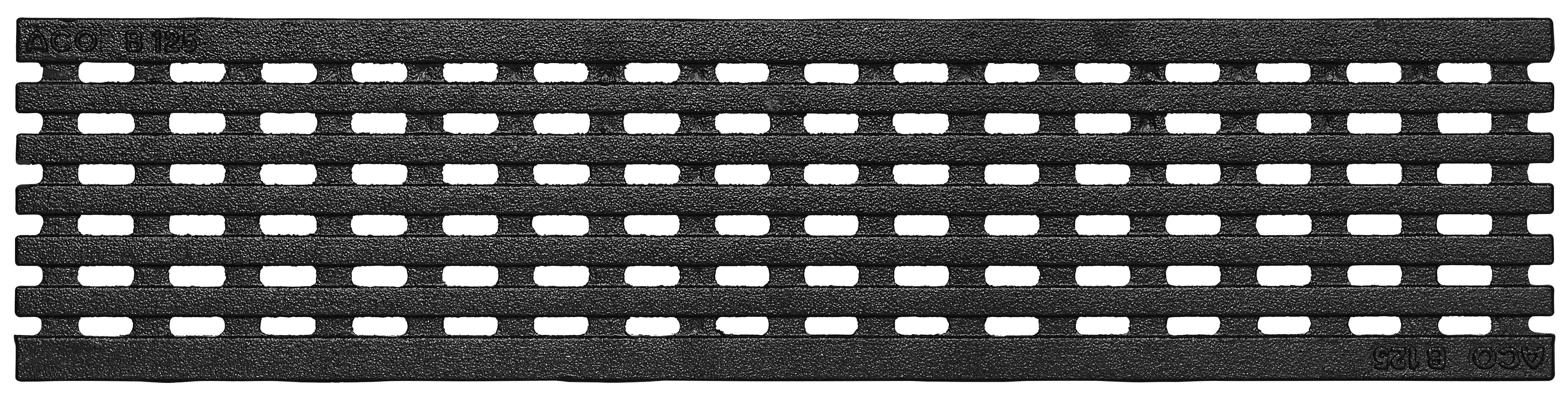

Intercept Heelguard B125 (20402)

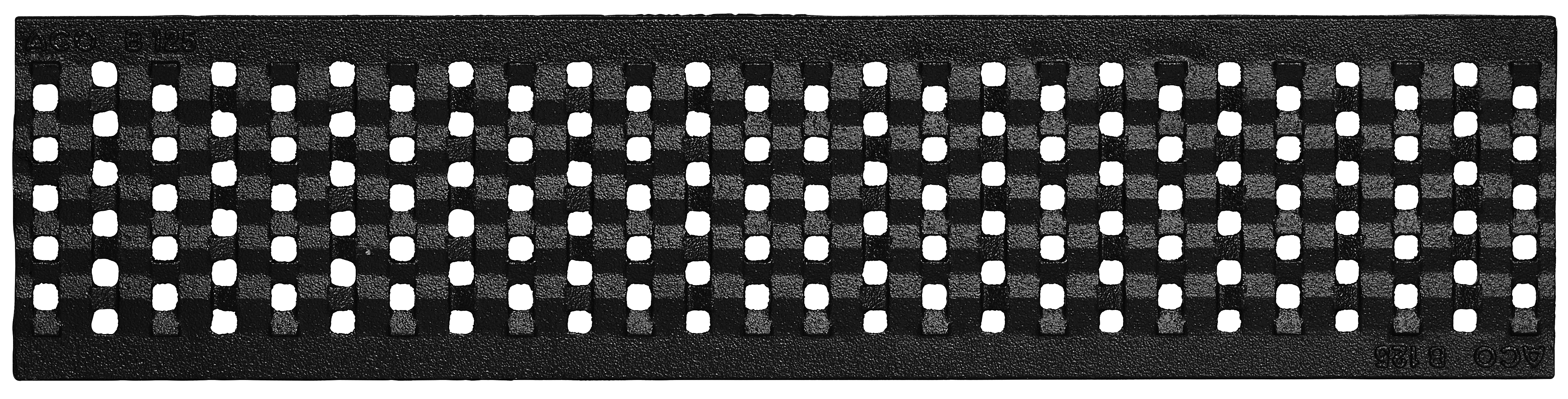

Mosaic Heelguard B125 (20401)

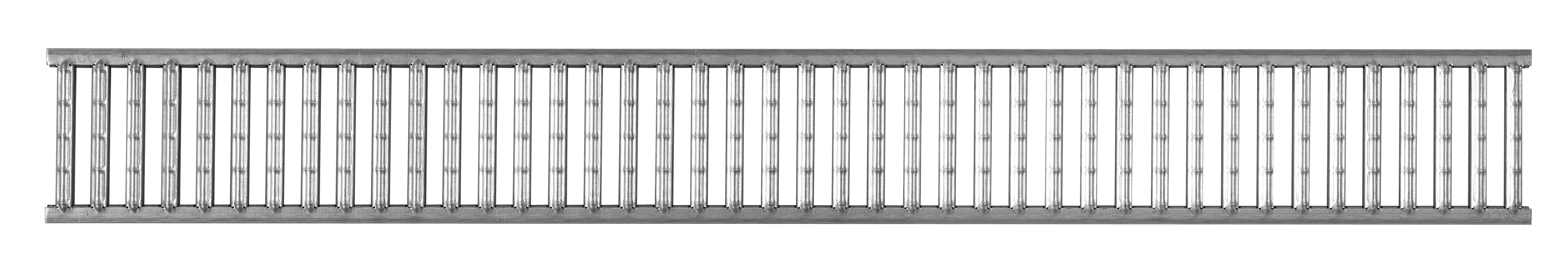

Galvanised Steel A15 (38516)

(Supplied as standard complete with HexDrain channel 19313)

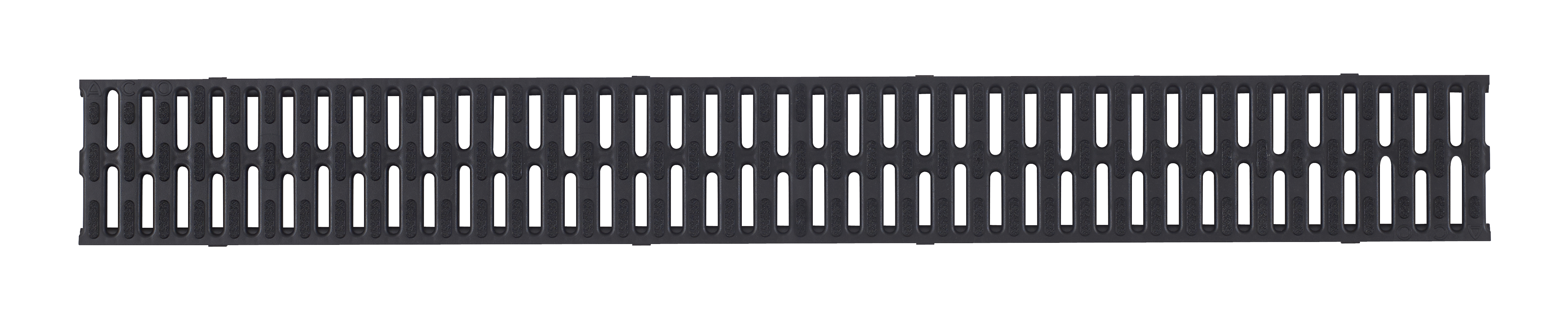

Black Plastic A15 (319250)

(Supplied as standard complete with HexDrain channel 19310)

Please note all A15 load class gratings are supplied in 1000mm lengths, all B125 load class gratings are supplied in 500mm lengths.

All “Complete the Look” gratings have an overall width of 118mm x overall depth of 15mm.

Please note even if a B125 load class grating is installed into HexDrain the load classification will still only be A15.
